Data Selection Options

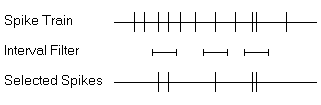

Before performing the analysis, NeuroExplorer can select the timestamped events that are inside the specified time intervals:

../../../_images/intfilter.png

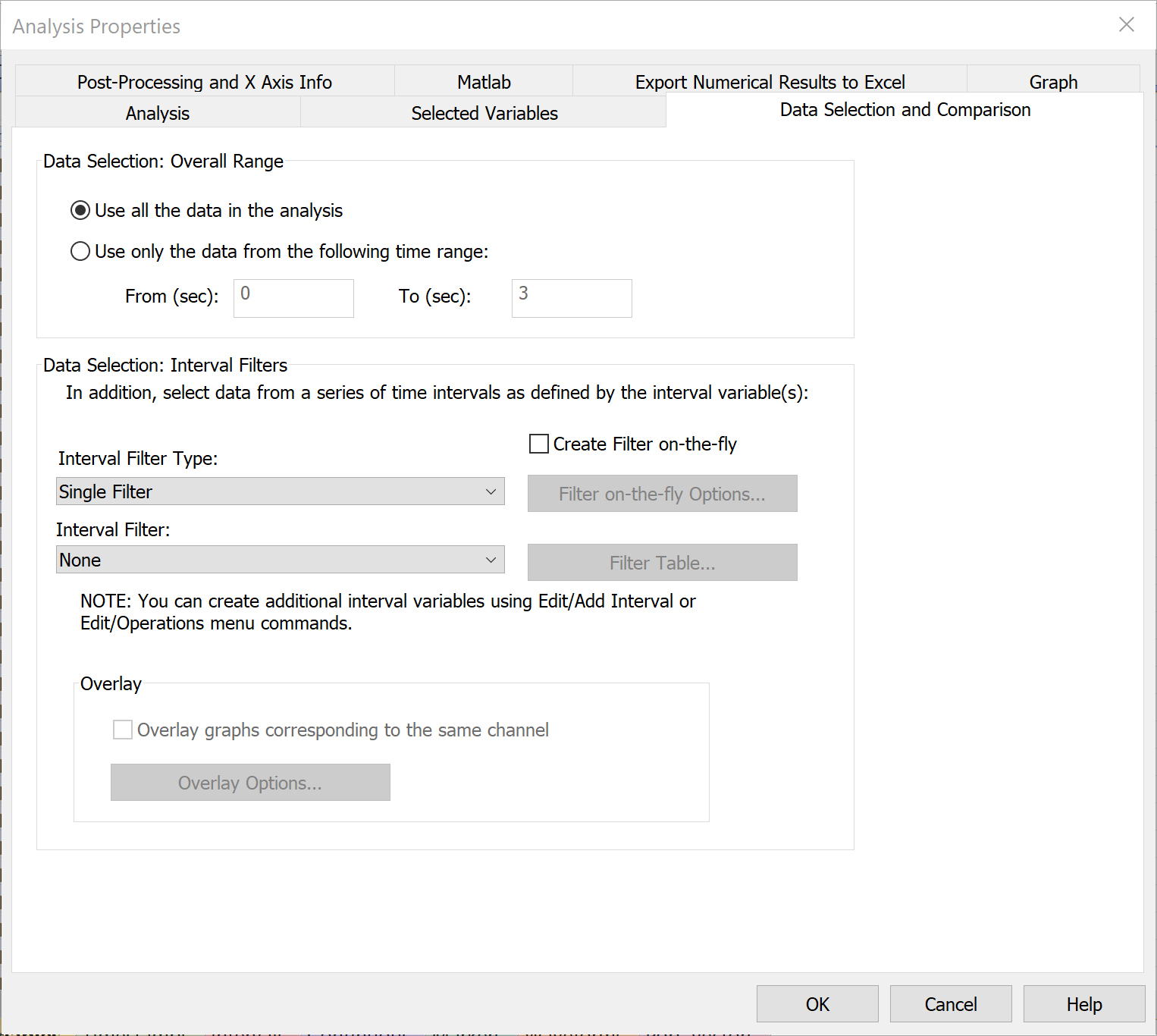

For example, you may want to analyze only the first 10 minutes of the recording session. To do this, choose the Data Selection tab in the Analysis Parameters dialog, click Use only the data from the following time range and specify From and To parameters in seconds:

../../../_images/dataselection.png

You can also choose an interval variable (at the bottom of the Data Selection page) as an additional data filter. NeuroExplorer then will select data from one or more time intervals as specified by the interval variable.

Some analyses (Perievent Histograms, Perievent Rasters and Crosscorrelograms) allow you to specify several interval filters, so that a different filter will be used for a column or for a row of graphs.
